Features

KENT KCTP-F30 for pad printing is a stand alone laser engraver with an innovative yet powerful fiber laser ideal for industrial productions.

  • Up to 250 lpi resolution solid prints
  • 175 lpi for half-tone 4 color process images
  • Long plate life up to 30,000 prints*
  • Able to engrave 10 mm steel plate
  • Innovative optic fiber laser head
  • Advanced control software
  • Eco-friendly: eliminates film positive, alcohol, acid and chemicals
  • Quick graphic setup and engraving
  • Multiple images per plate, cut plate costs

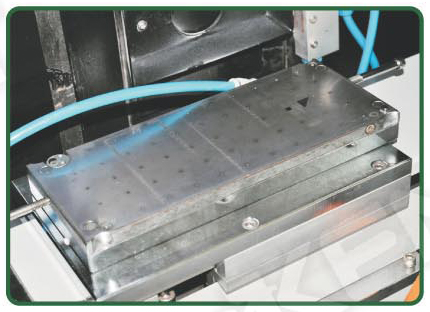

  • Precision “dead-on” platform inline with any KENT printer
  • Handy linking to laptop computer through USB plug

  • Laser:

    20W fiber laser

  • Wavelength (nm):

    1062

  • Support:

    win7 (32 & 64 bit), win10, win11, win12

  • Handle files:

    .ai, .dxf, .tiff, .plt, .eps ...

  • Min. line width (mm):

    0.02 - 0.03

  • Min. character size (mm):

    0.2

  • Plate size (mm):

    Standard: 100x250

  • Optional: 80x160, 150x300, 150x350

  • Optional: 180x350, 200x400

  • Data transfer:

    USB 2.0

  • Engraving area (mm):

    Standard: 100x100

  • Optional: 150x150 (Big lens)

  • Optional: 60x60 (Small lens)

  • Cooling:

    Air cool

  • Size (LxWxH mm):

    800 x 950 x 1,500

  • Weight (kg):

    218

  • Fume extractor

*Please note that actual output may be affected by print requirement, ink drying condition, load,unload arrangement, pad stroke speed, pad hardness, production setup, product quality and production control.
